Great bluetooth setup for your 4WD or car when you have only 4 tyre’s that you need live pressure/temperature monitoring for. Easy to install and the system turns off and on automatically as the sensors are activated by movement. You can also choose bar or PSI as you setting so you can choose the unit of measure that you use.
Live Data: The tyre pressure monitoring system (TPMS) monitors tyre pressure/temperature status in real time, which will transmit data to your phone and has an alarm and flashing warning if there is a problem. You can set the high and low alarms pressures between 7PSI – 90PSI. So for example if you have the low pressure alarm set at 30PSI when a tyre reaches this pressure the unit will beep and flash to warn you. Same goes for the high pressure alarm. In addition there is also an alarm if the tyre increases or decreases in pressure to quickly so you will be warned of slow leaks etc.
Wide Application: This system is suitable for any vehicle with four tyres with the maximum pressure of 90psi. You have a wide range to set your low and high pressure alarms and this is easy to do. Also you can set the temperature alarm so you will get a warning if it reaches this level.
Easy App: Easy to use app that works on both Android and iOS devices. Works in the background and with the latest bluetooth you can have more than one thing connect to the bluetooth on your phone so you can use one of our OBD-AUS scan tools if you also need live engine data and a trip computer.
External sensors: Which are easy to install, have a three-five* year battery life and are weather proof. Built to last and be accurate with accuracy +/- .15psi. After two years if the battery does go flat it is easier to replace and just takes a common CR1632 battery.
*Batteries may or may not last up to 3-5 years on some units (depending on use and battery condition). Batteries not covered by the product warranty.

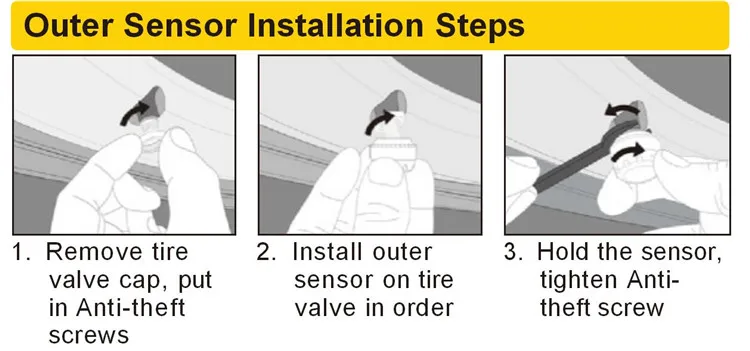

Each sensor has a unique ID code. Please make sure sensor installed on corresponding tire valve. Installation Diagram below:

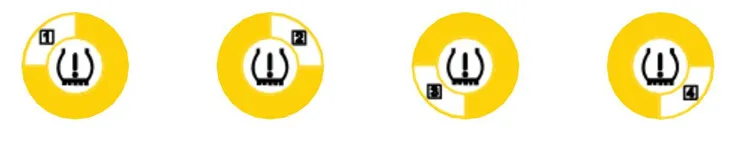

Corresponding sensor label indication on wheel sensors:
When screwing the sensors onto the valve open the APP on your phone and choose Auto Pair and Press “Search” button at the same time to easily get the sensor to bind.
Option 1: Scan QR code on card with package and then download and install.
Option 2: Search “BLE TPMS” in APP Store or Google play Store then download and install.
Recommended Pair: Scan Code
Open APP: Scan code to pair with corresponding sensor ID to complete pair process. Then install the sensor and wait for it to read data.
Note: If unable to read data after installation, the car needs to be driven above 20KM/H for 2-3KM, then data can be read.
This TPMS unit only has a maximum of 4 sensors (additional sensors are not possible) and is not suggested for use on longer vehicles such as Caravans.
